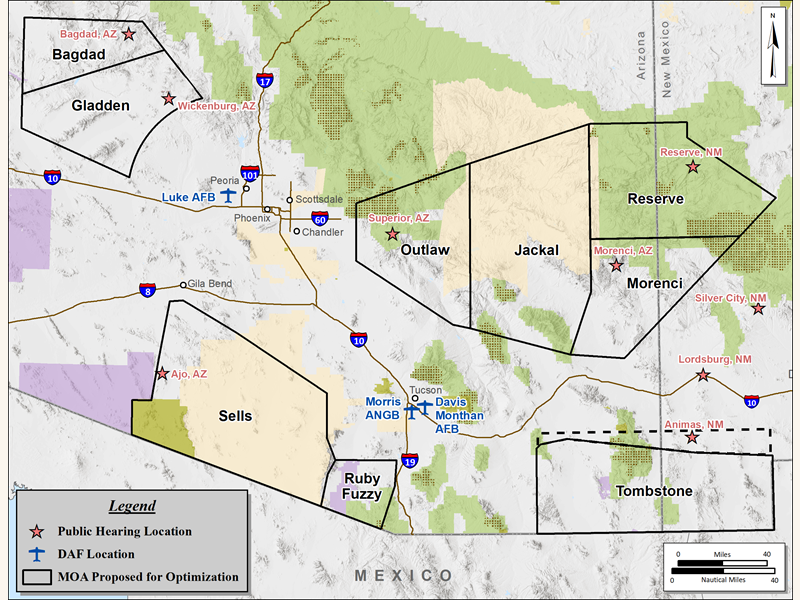

The Proposed Action is to address existing and future training deficiencies due to insufficient airspace available to aircrews stationed at Davis-Monthan Air Force Base, Luke Air Force Base, and Morris Air National Guard Base in Arizona. This would necessitate modifications to the volume and attributes of ten existing Military Operations Areas (commonly referred to as MOAs). The MOAs proposed for optimization include Tombstone, Outlaw, Jackal, Reserve, Morenci, Bagdad, Gladden, Sells, Ruby, and Fuzzy (see Figure below). The modifications include updating the published times of use; expanding the boundary of one MOA; adjusting the altitudes of existing MOAs to support low-altitude training; authorizing supersonic training at lower altitudes in more MOAs; and authorizing use of chaff and lowering the minimum release altitude for flares.
The Proposed Action does not include creating new MOAs or changes at the installations (personnel, infrastructure, aircraft inventory, or airfield operations), changes to land use beneath the MOAs, or weapons release.
Click here to view an interactive map of the airspace
*Note: A venue in Superior, AZ was not available during the Public Hearing schedule. The meeting in Gold Canyon, AZ is the replacement for that location.
Frequently Asked Questions
A MOA is a type of Special Use Airspace designated outside of Class A airspace by the Federal Aviation Administration to separate certain non-hazardous military aircraft training activities from Instrument Flight Rules (IFR) traffic and to identify for Visual Flight Rules (VFR) traffic where these activities are conducted. MOAs are published on sectional aeronautical charts with defined geospatial boundaries, which includes the lowest altitude (floor), highest altitude (ceiling), and lateral dimensions for training activities, and their times of use. Military use of the MOA outside of the published times of use requires the publication of a notice to air missions (NOTAM).
Why does the Air Force need to modify their MOAs?
The existing MOAs in this region were charted decades ago for pilot training with aircraft no longer in use. There have been minimal improvements over time to support changes to Air Force aircraft, training requirements, and missions in response to modern day threats to national security. The existing MOAs have limited capacity to support low-altitude and supersonic operations, which are essential skills for fighter pilots.
To successfully avoid threats, fighter pilots must have nearly automatic muscle reactions during aerial combat. This can only be accomplished by realistic, repetitive training, in airspace of a size that can support multiple aircraft simultaneously, with floors that allow for low-altitude operations, and that allow for supersonic speed at lower altitudes and use of defensive countermeasures (commonly known as chaff and flares which are used to avoid detection or attack by an enemy).
A real-world mission differs significantly from the training accomplished in a MOA that lacks requisite volume, altitude, and attributes. As an example, during a real-world mission a pilot defeats a threat by employing ingrained training tactics including turning away, deploying defensive countermeasures, diving at supersonic speed to a low-altitude to use terrain masking to block the aircraft from view to ensure a safe return home. In comparison, within an insufficient MOA, the pilot starts an escape at supersonic speed (as they would in a real-world mission) but then must reduce speed quickly to avoid operating at supersonic speed below the authorized altitude. This is the opposite of what would occur in combat. Similarly, in combat a pilot would attempt terrain masking to avoid being visible to a threat. Training for this is not possible in a MOA bounded by a high floor that precludes terrain masking. Airspace limitations and constraints result in training maneuvers that are exactly the opposite of what is required for combat survival. This counterproductive training experience, combined with the improving threat technology and increasing distances from which threats can acquire a fighter aircraft’s location, threatens aircrew survivability and mission readiness.
What are the Alternatives and how were they selected?
The Air Force studied four alternatives in the Draft EIS, including a No Action Alternative. The action Alternatives were selected to meet the following objectives:
-
- Optimize airspace managed by the Air Force. Air Force aircrews cannot rely on the availability of another service’s airspace to accomplish daily requirements.
- Optimize existing MOAs within a reasonable distance from the bases.
- Improve the existing MOAs to support low-altitude training and supersonic operations at lower altitude.
- Increase variety of terrain overflown in existing MOAs during low-altitude training to improve training realism.
- Adjust the published times of use to align with how the MOAs are currently used.
